MiniEva Power concentrates all the home automation and control functions of the Eva Power card into half the space, only reducing the number of applications that can be controlled. MiniEva Power can manage different types of home equipment independently and in a personalised fashion.
MiniEva Power manages lighting, blinds, electric pumps and solenoid valves (heating, irrigation), simple and electronic commands, presence detectors, twilight, wind and rain sensors, customisable timer functions and measures the resulting loads.
MiniEva Power has 8 digital inputs, 4 relay outputs, a 230 V~ mains supply and an RS485 port for communications and programming using Lapis software.

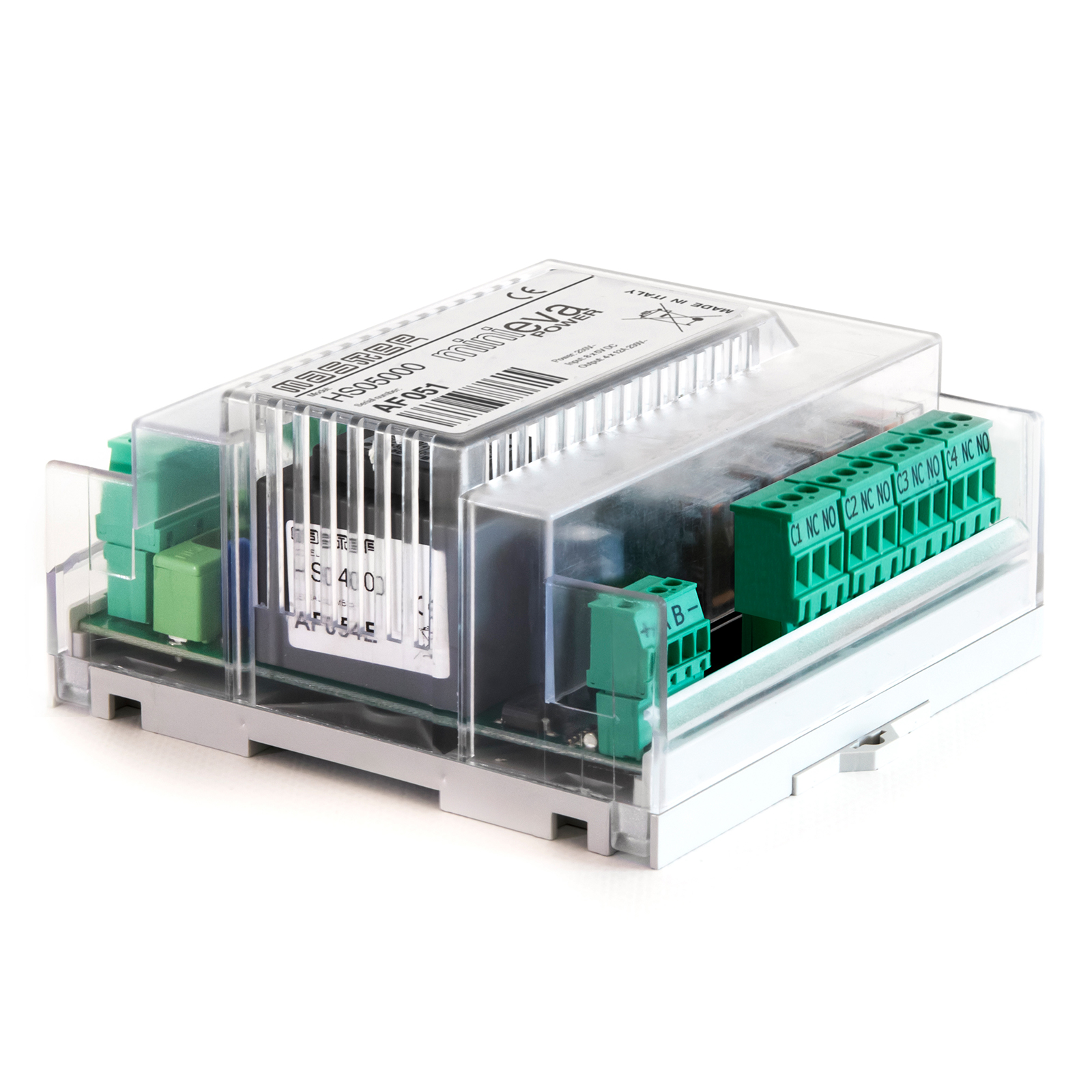

MiniEva Power is a complete automation board with 8 5V digital inputs and 2 terminals for the system, 4 outputs with 230V~ 12A resistive relays and NO-NC double terminals (for total loads of up to 3 kVA), a 230V~ mains power supply and an RS-485 serial communication and programming port. MiniEva Power measures absorbed power in real time on each of the 4 outputs (for loads in excess of 100W). The board is set up for fastening with DIN guide (Master type) control panel where it occupies 6.5 modules and, thanks to the optional side rings, can be screwed onto junction boxes or plasterboard walls. All connections are made using extractable printed terminal blocks to facilitate wiring and replacement. MiniEva Power is equipped with an auxiliary power supply device that allows the built-in clock to run and settings to be maintained even in the event of black-out. It is supplied pre-programmed latched on each output to check functioning. It is fitted with LED indicator lights for easily identifiable relay power supply, functioning and enabling.
MIniEva Power can be set up as you wish, using the simplified software programming interface designed by Lapis.
HS05000 MiniEva Power (package of 1pc.)
