Description

FUNCTION

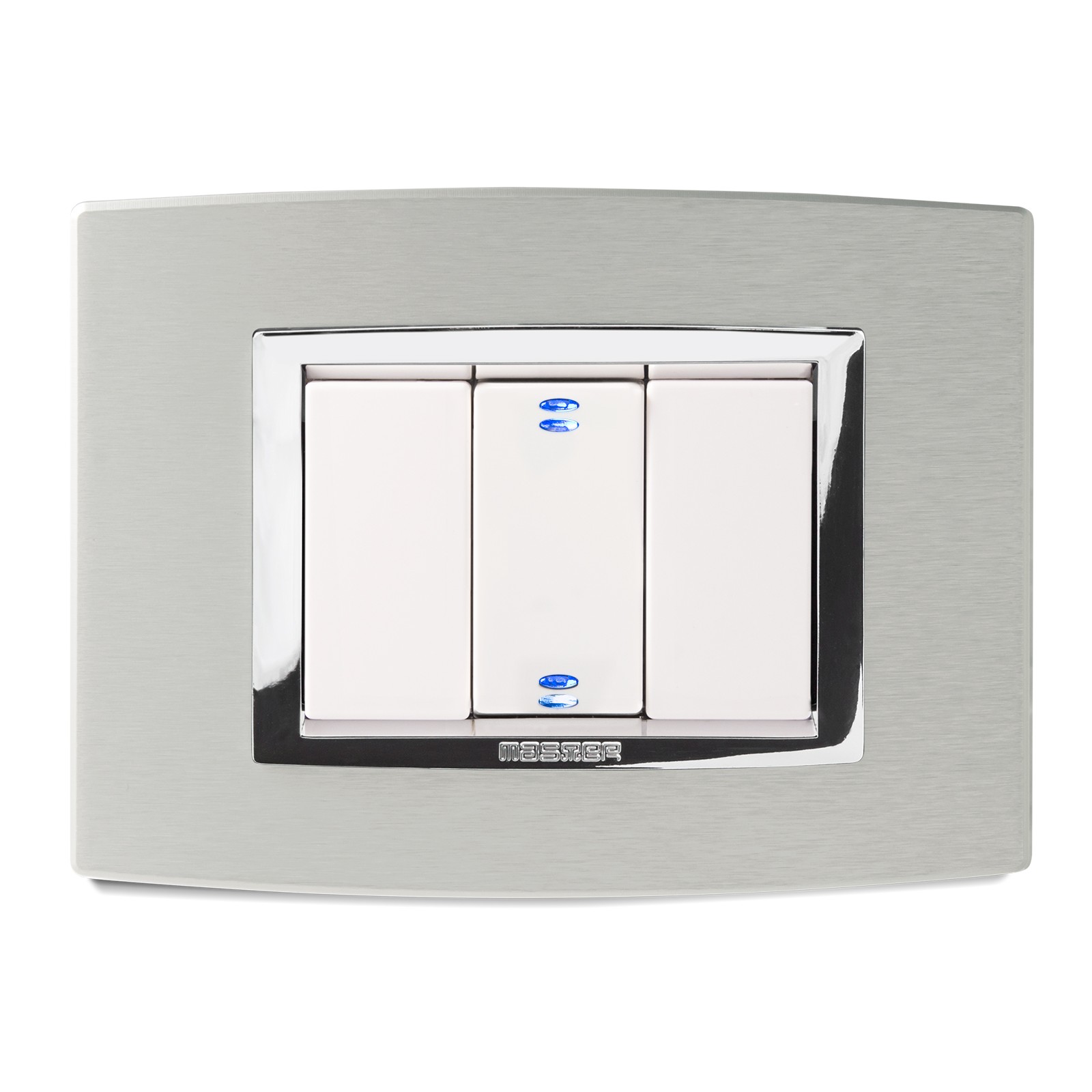

Dual electronic button (max 24V DC, 10 mA) with low noise and optional blue backlight for the Master Modo civil serie.

CONNECTIONS
UNA home automation buttons have 2 extractable terminals, each with one clean contact for inputs and a power supply for the blue backlight LED. May be connected independently and used as single buttons (1 terminal) or double buttons (2 terminals).

TECHNICAL CHARACTERISTICS
UNA double buttons are used and wired like normal electro-mechanical buttons and used as digital inputs on all UNA boards permitting them.
Terminals are all removable and printed for easy wiring and replacement.

CODES
HA10012 Neutral command
HA10022 Up/down.
HA10032 General shutters
HA10042 Temperature
HA10052 General ON/OFF
